DEEneo-ISC-IP68 (Inline Signal Conditioner)

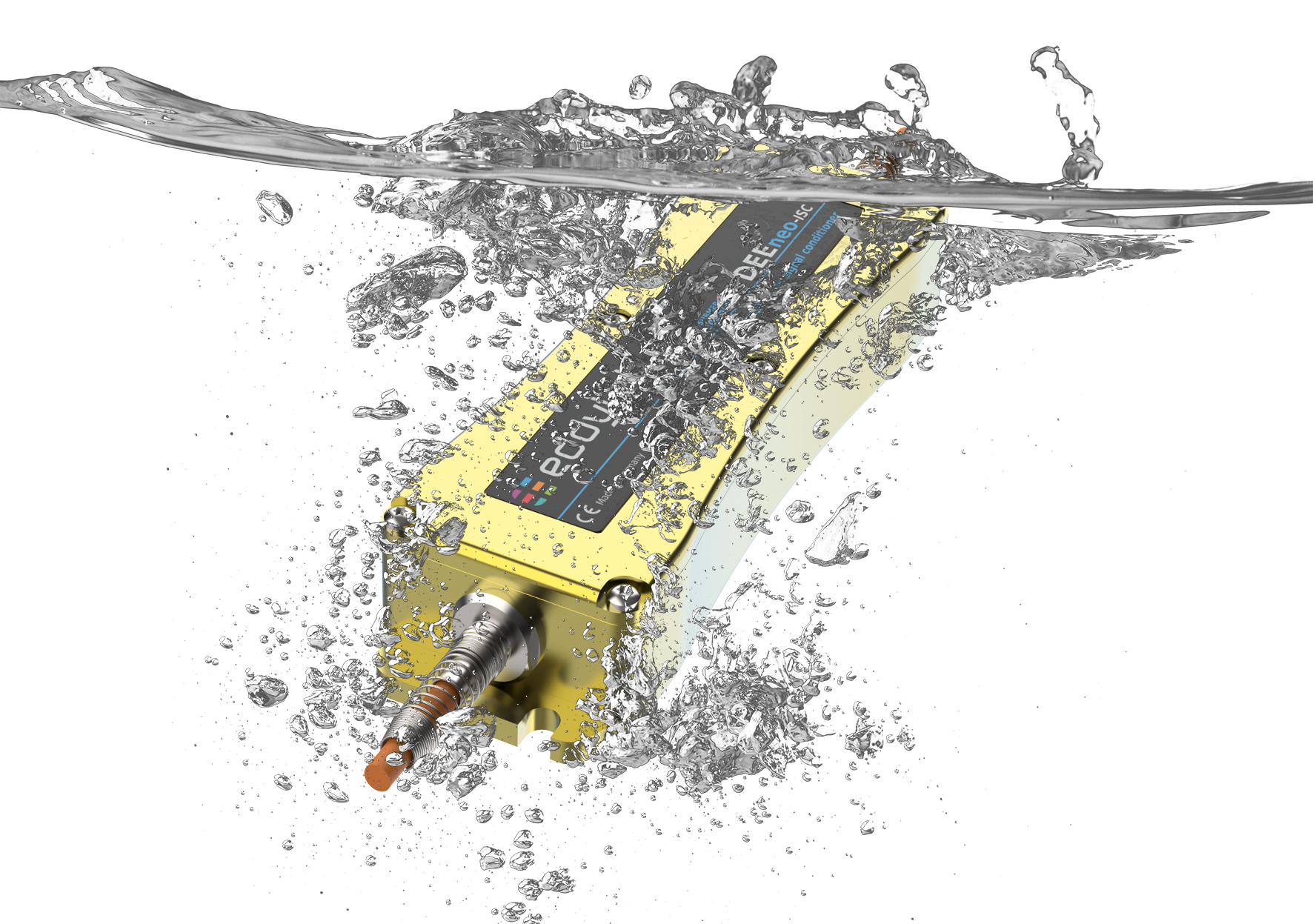

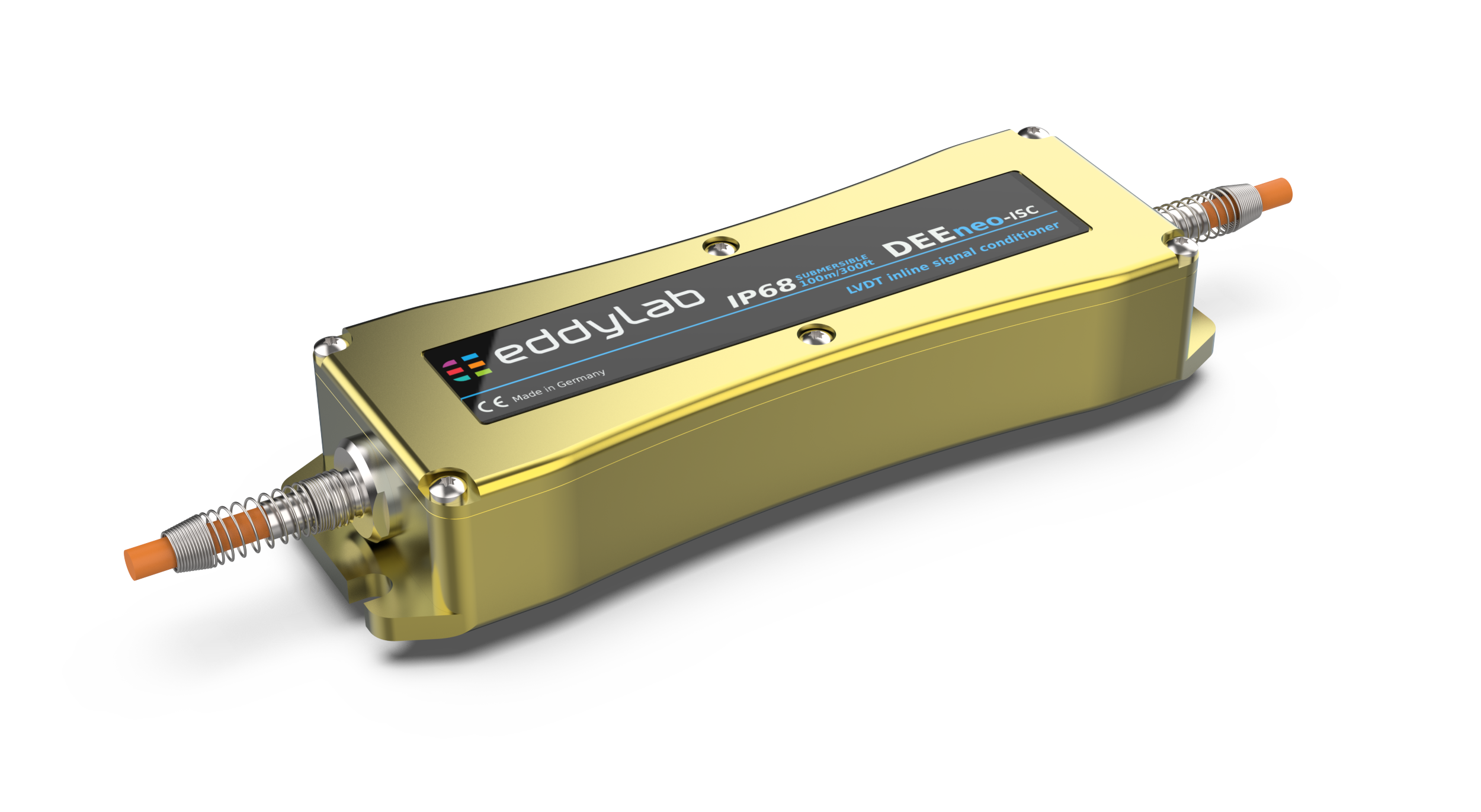

The DEEneo-ISC-IP 68 inline signal conditioner was developed for operating inductive LVDT sensors (full bridge) and is integrated into the sensor connection cable. The new inline signal conditioner is built to IP68 protection class and is ideally suited for the reliable processing of LVDT sensor signals in moist, wet, or pressurized applications – whether underwater, outdoors, or in maritime environments.
Key Facts
- DEEneo-ISC-IP68 inline signal conditioner was developed for operating inductive LVDT sensors (full bridge) and is integrated into the sensor connection cable. The electronics supply the sensor and convert the sensor signal into a standardized, analogue output signal with the help of a microcontroller.
- Operation of all commercially available LVDT sensors is also possible. Please contact eddylab for the connection of sensors from other manufacturers at: sales@eddylab.de.
- The frequency and amplitude can be set using the eddySETUP configuration software for optimum performance ofthe measuring chain. A pushbutton (SET button) is used for basic configuration and for setting the measuring range limits - this enables quick and easy adaptation to the customer‘s application.
- Where possible, eddylab calibrates the sensor and electronics as a measuring chain. The sensor characteristic
curve can be linearized to meet the highest accuracy requirements.
Technical data DEEneo-ISC-IP68
Features
- Power supply: 9…36 VDC
- Output signal: Selectable 0...20 mA, 4...20 mA, ±20 mA (load < 500 Ohm), 0...5 V, ± 5 V; 0...10 V, ± 10 V(load > 150 Ohm)
- Signal processing: digital via microprocessor
- Resolution: 16 bit
- Current consumption: 70 mA at 24 VDC, 130 mA at 12VDC
- Sensor supply: Standard / 3V / 3.3 kHz, can be modified by software
- Cable break detection
- Switching output
- Signal adjustment via SET button
- Linearisation sensor characteristic curve: optional available

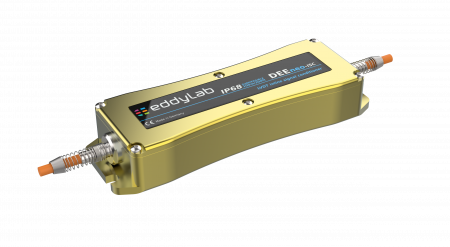

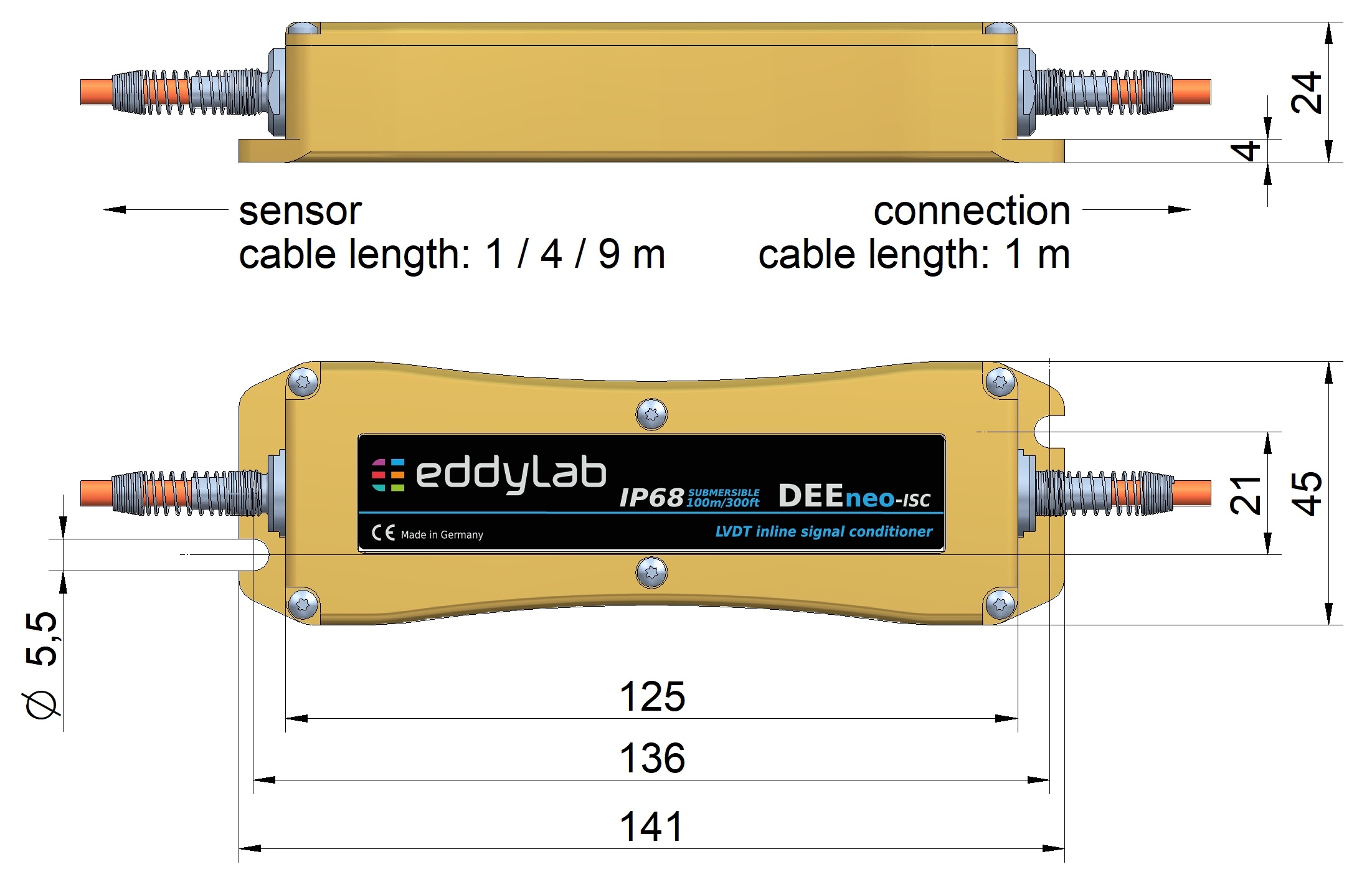

Technical drawing DEEneo-ISC-IP68
