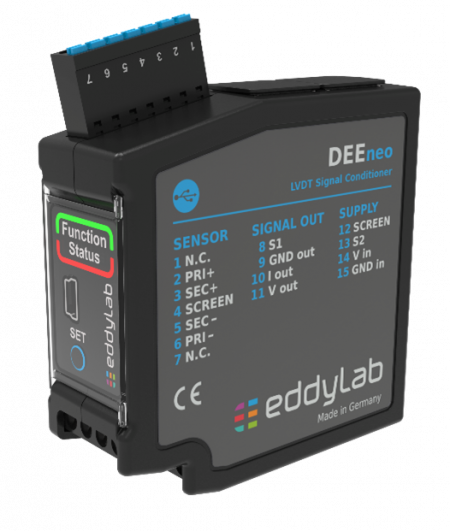

DEEneo (Digital Extern Electronics)
From 2025, our new DEEneo and DEEneo-ISC LVDT electronics with digital signal processing will be available both for switch cabinet installation and as cable electronics. Thanks to a modern microcontroller, they are easy to configure and compatible with all commercially available LVDT sensors. Signal setting is done easily via a teach function with a push button.
Key Facts
- DEEneo is short for "Digital External Electronics" and is the follow-up product to the LVDT electronics IMCA for switch cabinet installation from eddylab.
- DEEneo-ISC is short for "Inline Signal Conditioner" and is the follow-up product to the LVDT cable electronics KAB.
- The LVDT electronics IMCA and the cable electronics KAB will be cancelled and are no longer available from the end of September 2024.
- DEEneo is based on digital signal processing, has new housing dimensions as well as analogue and digital outputs. This means that the previous model IMCA and the follow-up model DEEneo are not 1:1 replaceable!
- The electronics housing of the DEEneo-ISC electronics integrated into the sensor cable remains unchanged. In terms of geometry and cabling, the old and new electronics can be interchanged 1:1.
- Outstanding price-performance ratio
Our new models also offer numerous exciting functions that will be available to you in the near future.
Future features of the new electronics
- Digital interfaces: Profinet, EtherNet/IP, RS485, EtherCAT, etc.
- Customer configuration via software or web interface
- Linearisation by the customer
- Configuration of the switching outputs (e.g. comparator function)
- Outstanding price-performance ratio

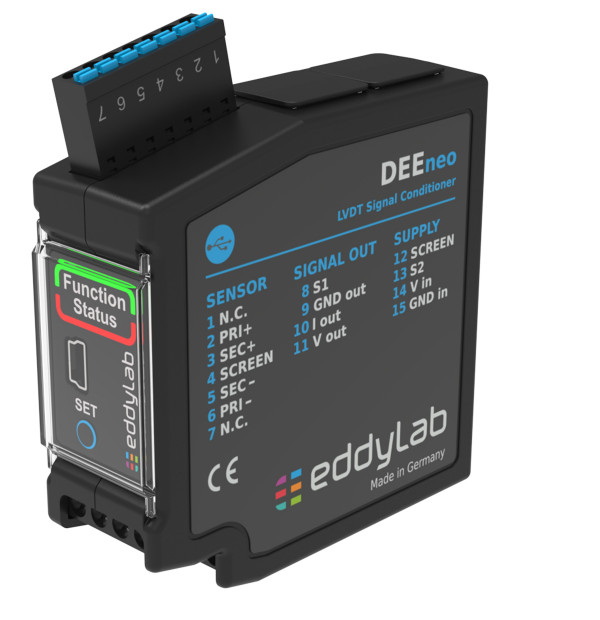

NEW/Successor: DEEneo
Features:
- Dimensions: 75 x 76,5 x 26 mm
- Power supply: 9...36 VDC
- Signal processing: digital via microprocessor
- Resolution: 16 bit
- Current consumption: 70 mA at 24 VDC, 130 mA at 12VDC
- Sensor supply: Standard / 3V / 3.3 kHz
- Cable break detection: Yes
- Alarm signal: Open drain up to 60 V
- Switching output: Yes
- Signal adjustment: via teach button on sensor
- Linearisation sensor characteristic curve: Yes, optional available

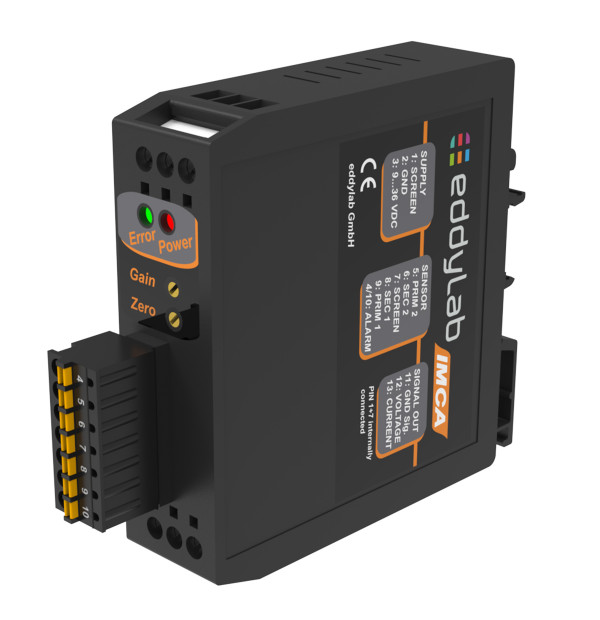

Predecessor: Imca
Features:
- Dimensions: 79 x 74 x 22,5 mm
- Power supply: 9...VDC
- Signal processing: analog
- Resolution: converted approx. 13 bit
- Current consumption: 75 mA at 24 VDC, 150 mA at 12VDC
- Sensor supply: Standard: 3V / 3.3 kHz
- Cable break detection: Yes
- Alarm output: Yes, max. 14V and 30 mA
- Switching output: No
- Signal adjustment: via dip switch and trimming potentiometer
- Linearisation sensor characteristic curve: No

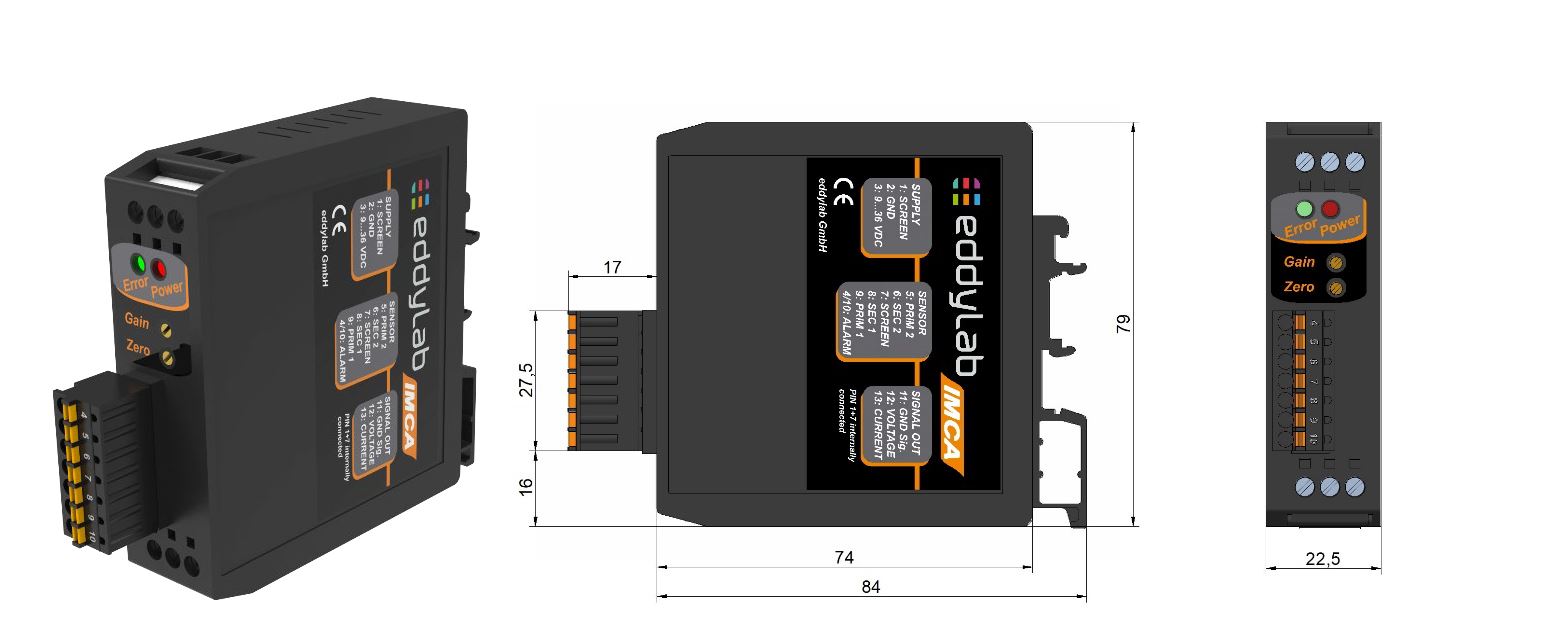

Technical drawing: IMCA

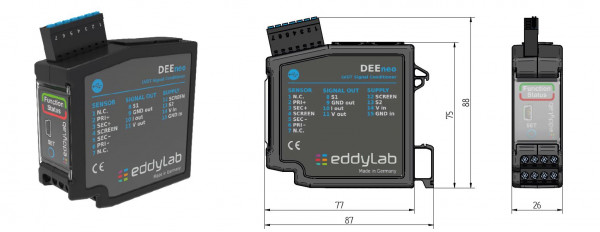

Technical drawing: DEEneo

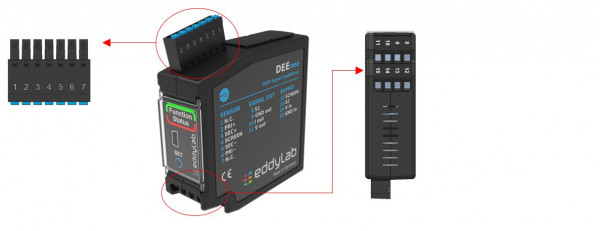

Connection/ Assignments DEEneo
| CLAMP |
TECHNOLOGY |
MAX. WIRE CROSS-SECTION |
NOTE |
| 1-7 |
Push-in |
1,5 mm² |
Wire end ferrule length 12 mm |
| 8-15 |
Srew |
2,5 mm² |
Torque 0,5 Nm |
| CLAMP |
FUNCTION |
NOTE |
WIRE COLOUR OF EDDYLAB CABLES |
| |
|
|
TPE-CABLE |
PTFE-CABEL |
| 1 |
N.C. |
not connected |
|
|
| 2 |
PRI+ |
primary coil |
white |
white |
| 3 |
SEC9+ |
secondary coil |
black |
green |
| 4 |
SCREEN |
|
|
|
| 5 |
SEC- |
secondary coil |
blue |
brown |
| 6 |
PRI- |
primary coil |
brown |
yellow |
| 7 |
N.C. |
not connected |
|
|
| 8 |
S1 |
switching output |
|
|
| 9 |
GND out |
GND signal |
|
|
| 10 |
I out |
signal, z.B. 4...20 mA |
|
|
| 11 |
V out |
signal, z.B. 0...10V |
|
|
| 12 |
SCREEN |
|
|
|
| 13 |
S2 |
alarm-/switching output |
|
|
| 14 |
V in |
supply voltage |
|
|
| 15 |
GND in |
GND supply |
|
|

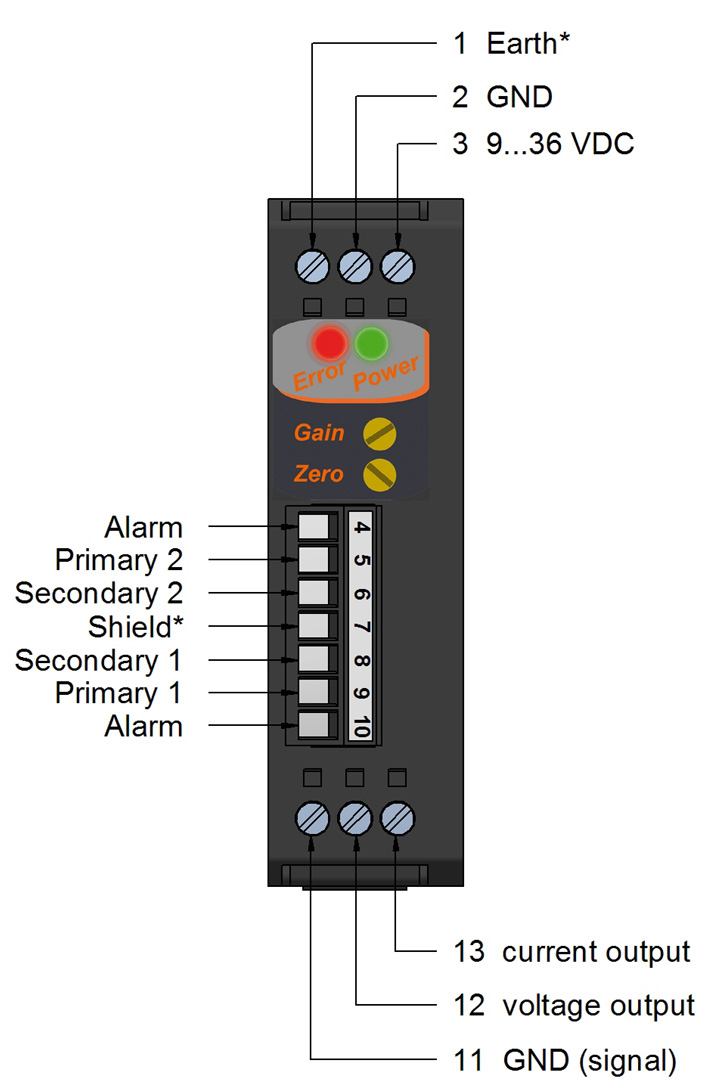

Connection/ Assignments IMCA
